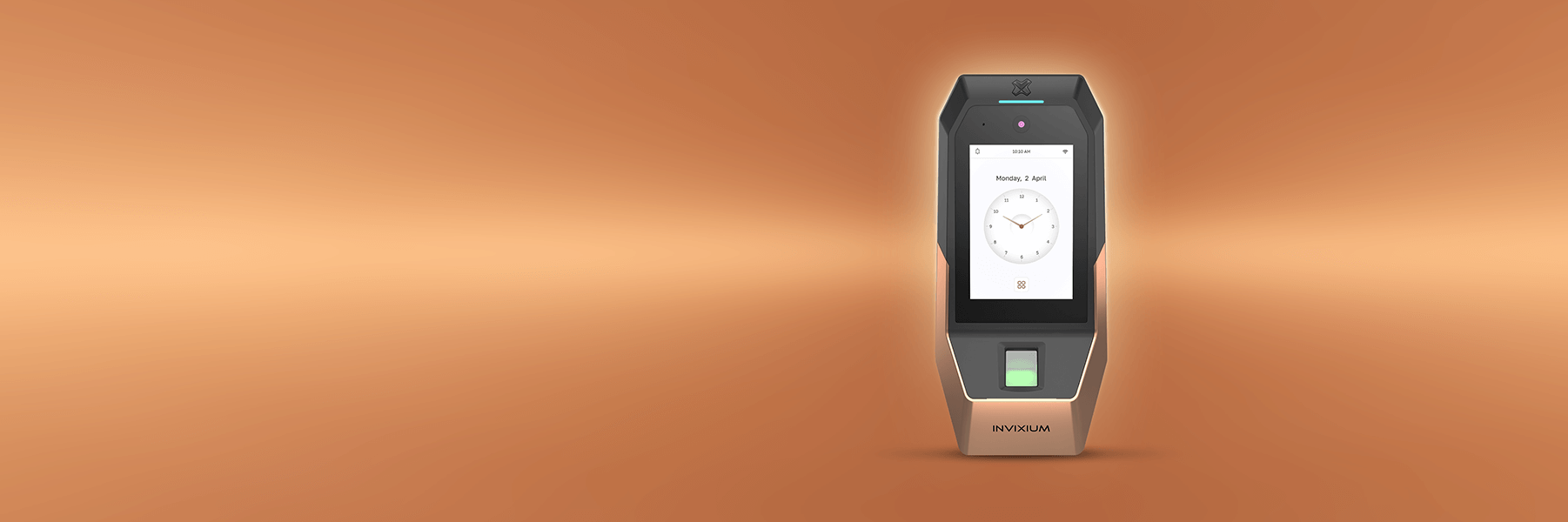

The newest member of the highest-selling TOUCH Series with Advanced Fingerprint Technology

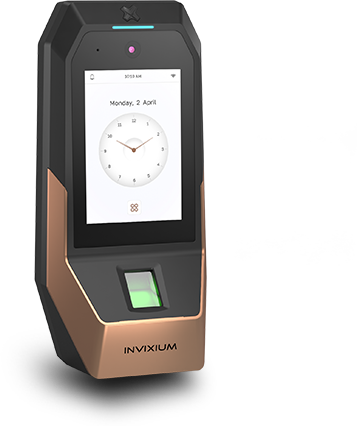

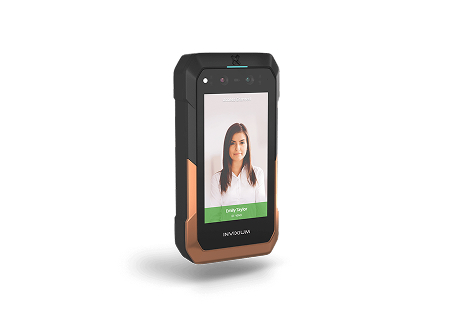

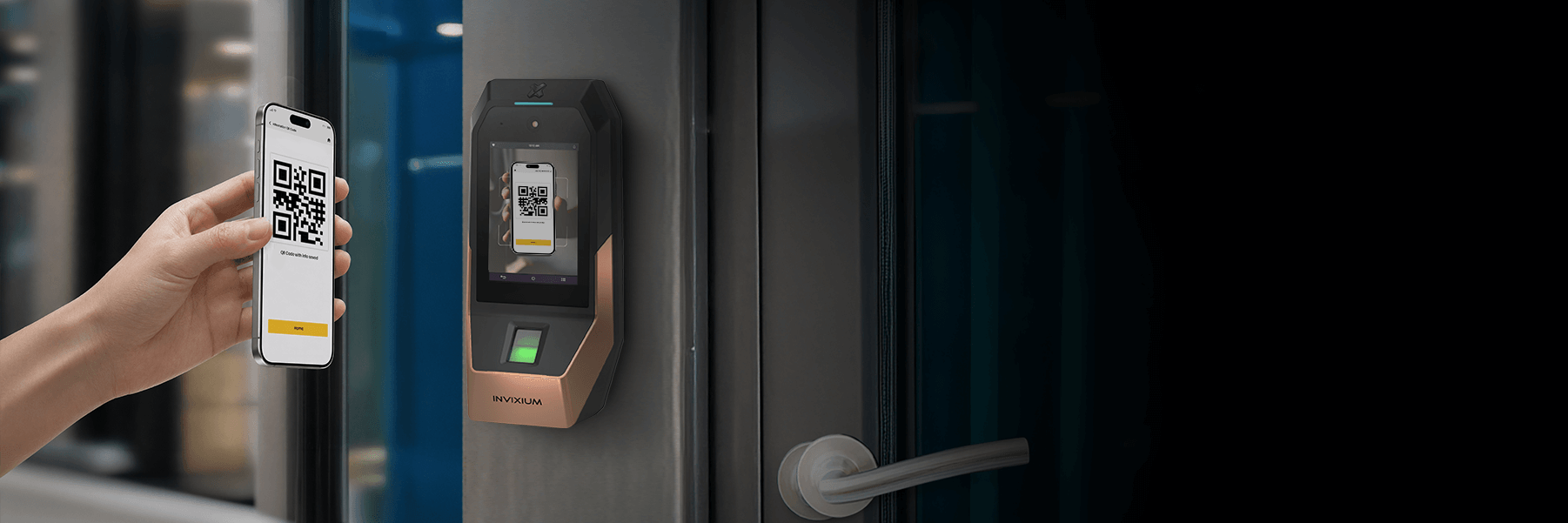

The IXM TOUCH 3 offers advanced fingerprint recognition for secure and efficient access control and workforce management. It features a vibrant and responsive 3.5″ IPS LCD touchscreen, providing a clear and user-friendly interface for easy interaction. Its slim design seamlessly blends with modern enterprise interiors, while the angled, exposed fingerprint sensor ensures natural finger placement for effortless usability. It also supports multiple access options, including PINs, RFID credentials, and QR Codes, catering to diverse user needs. Additionally, its durable design and IP65 rating make it suitable for enterprises. TOUCH 3 is fully compatible with all major access control panels via IXM LINK.
Value-driven Fingerprint and Card Device
Integrations With Leading Access Control Software
TOUCH 3 integrates seamlessly with leading access control software via IXM LINK, providing a smooth and cohesive experience.

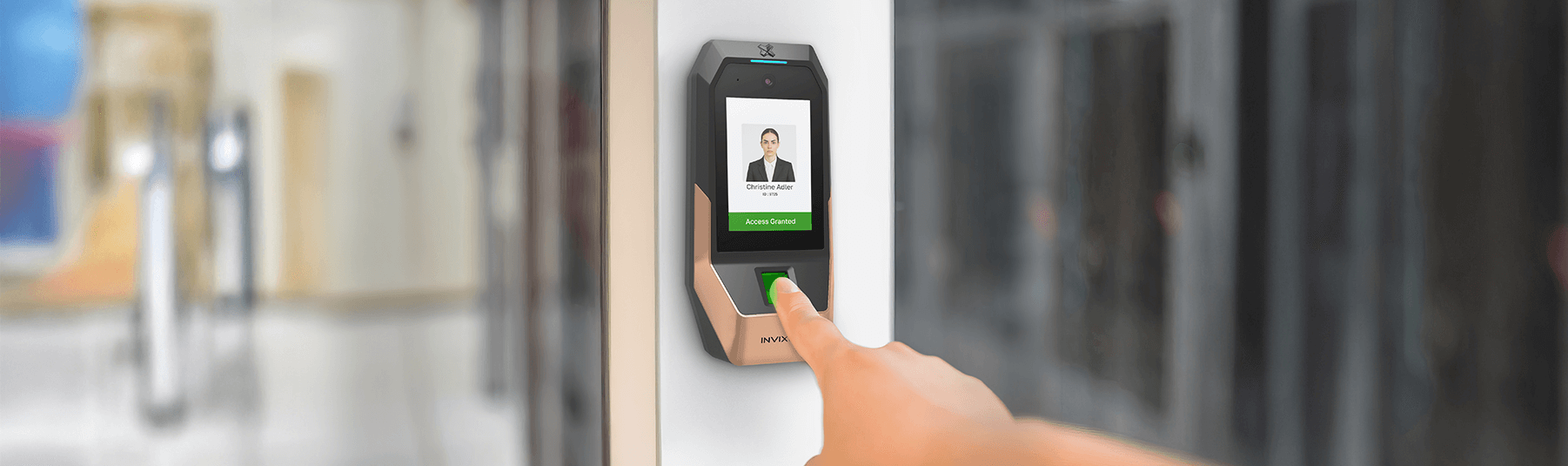

Ideal Applications
Even More Great Features
Communication Options Add Flexibility
TOUCH 3 supports multiple communication protocols providing a flexible and adaptable solution to integrate with various systems.
Encryption Keeps Data Secure
Built with state-of-the-art encryption technology, TOUCH 3 is encrypted with industry-standard protocols, providing end-to-end security.
Tamper Protection Keeps Your Device Secure
Tamper protection features that detect and alert administrators if the device is being tampered with or physically disturbed, enhancing security and preventing unauthorized access.
Customization Options
TOUCH 3 is backed by a team of experts at Invixium with over 200 years of collective experience in biometric security, which means that this solution can be customized to solve your unique security needs.
High-Quality Products Made in Canada
All Invixium products are NDAA-Compliant and proudly Made in Canada with the highest-quality materials to ensure a delightful user experience and long-lasting operation.
Built-in Relay
TOUCH 3 can be installed as a standalone device if needed because of its inbuilt relay making it easy to deploy as part of a larger access control system.
POE Support
With PoE support, TOUCH 3 simplifies installation and provides greater flexibility for deployment.
OSDP and Panel Feedback
TOUCH 3 supports various communication modes such as OSDP for secure communication with any Access Control Panel.

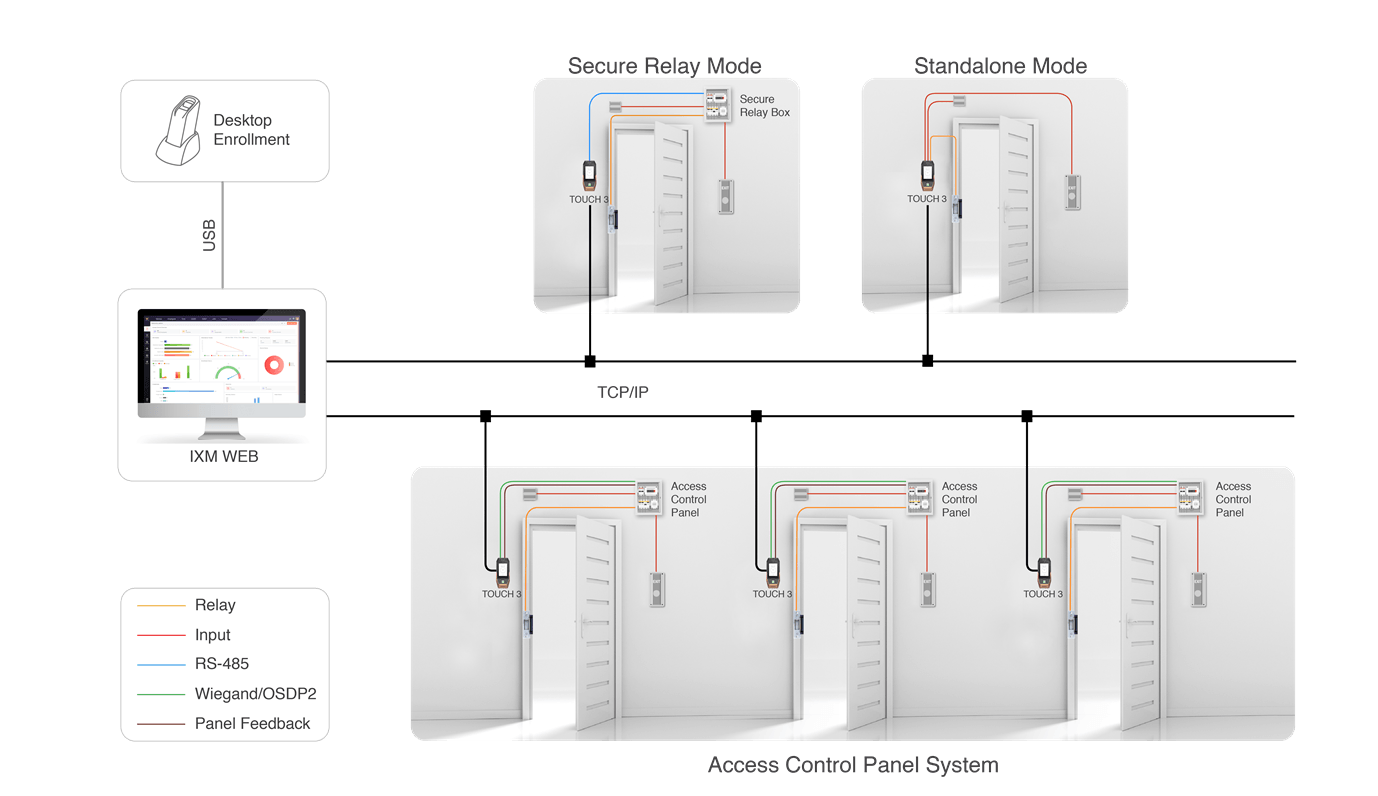

Network Architecture
Software

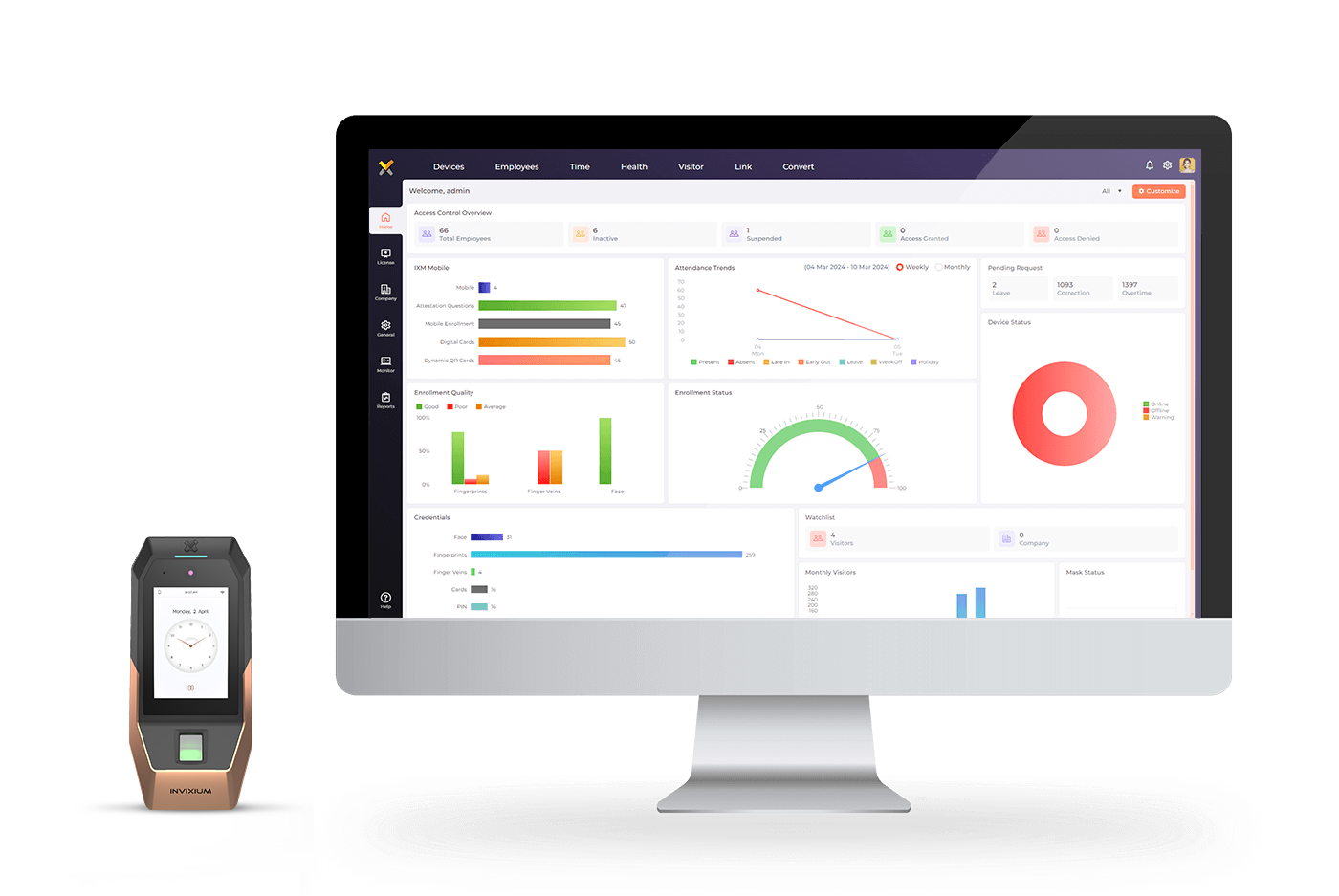

TOUCH 3 pairs with Invixium’s enterprise-grade, all-in-one solution for device management, IXM WEB. User-friendly workflows and data-driven reports provide a comprehensive summary of your biometric system at the click of a button. IXM WEB is web-based, intuitive, and customizable to a variety of business needs with multiple integrations available.
Tech Specs
| TOUCH3 Features | Description |
|---|
| Processor | 1.7 GHz Dual Core NXP i.MX 93 |
| CPU | 64-bit Cortex® – A55 |
| NPU | ARM® Ethos™ U-65 microNPU |
| Memory | 8 GB Flash + 1 GB RAM |
| Operating System | Secure Linux |
| Communication Options | TCP/IP, USB Aux, RS-485 (OSDP v2), Wi-Fi |
| Ethernet | 100BASE-T |
| Wi-Fi | 802.11 a/b/g/n |
| Bluetooth | Bluetooth 5.2 |
| USB | USB 2.0 (OTG), USB 2.0 |
| Wiegand | Customizable up to 512 bits |
| # of SPOs / SPIs | 2 & 2 |
| Panel Feedback | Available (2 Physical Lines) |
| Door Access Controller | Relay rating 2A@24VDC (1 Output, 2 Inputs, 1 Relay) |
| Tamper Protection | Supported |

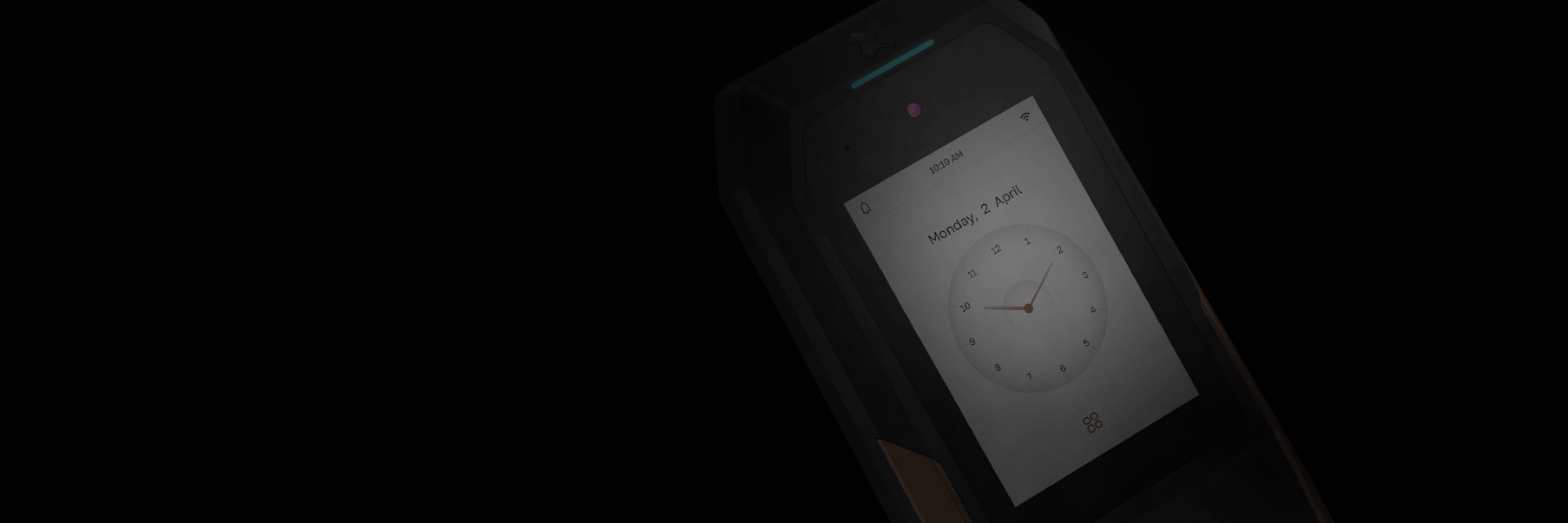

| LCD | 3.5” IPS Touchscreen LCD |
| Camera | 2 MP |
| Screen Protection | Toughened Glass |
| LEDs | RGB (Power & Status) |
| Audio | Mic and Speaker |
| Intercom | VoIP |
| Fingerprint Sensor | FBI Certified SecuGen Optical Sensor |
| Fingerprint Recognition Capacity | 20,000 (1:N), 100,000 (1:1) |
| Card Capacity | 100,000 Users (1:1) |
| Transaction Log Capacity | 500,000 Logs |
| Image Log Capacity | 10,000 Logs |
| Authentication Speed | <1 second |
| Template Storage (Privacy) | Configurable – On Device, Server or Card |

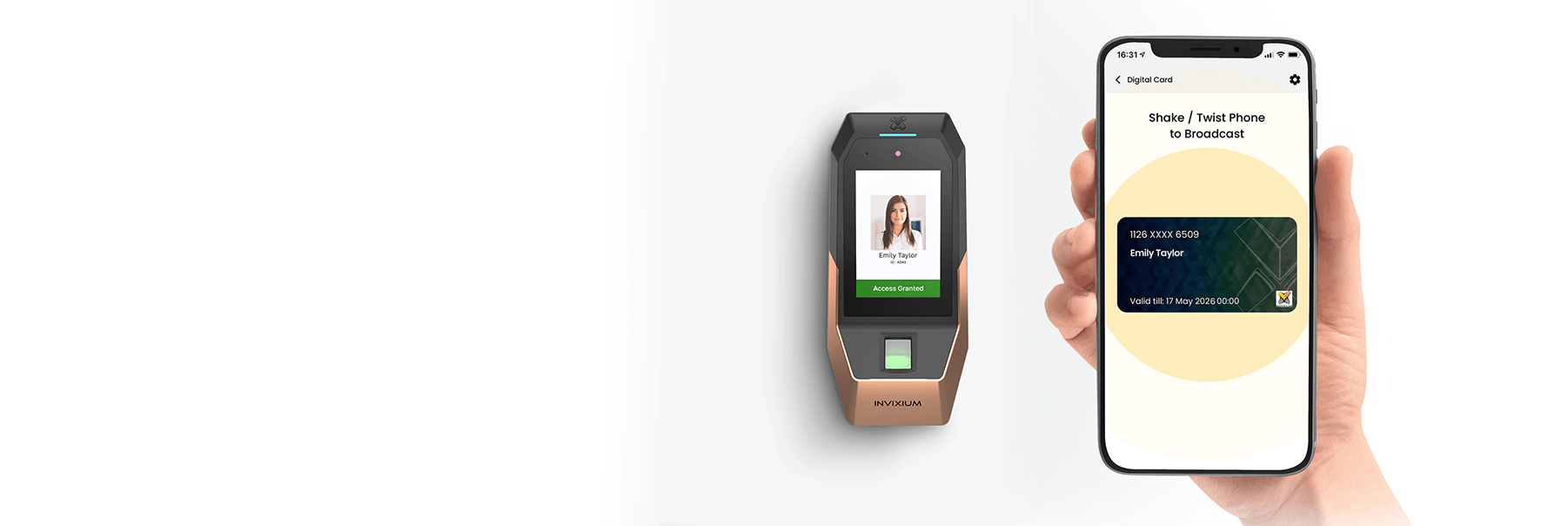

| Mobile Credentials | Digital Card supported via IXM Mobile |
| Other Credentials | PIN, RFID, QR Codes |
| PoE | IEEE 802.3af |
| Power Supply | PoE, 12 VDC@2A, 24 VDC@1A |

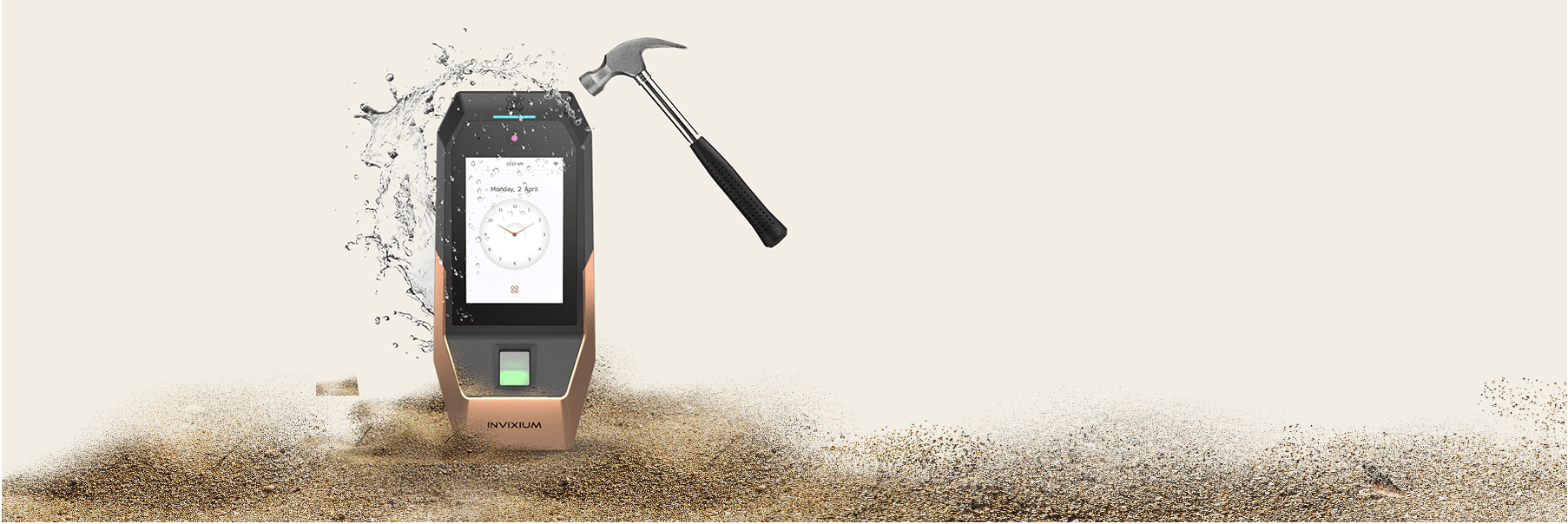

| Environmental Rating | IP65 and IK08 |
| Operating Temperature | -20° to +60° C (-4° to 140° F) |
| Relative Humidity | 0-95% non-condensing |
| Regulatory Approvals & Certificates | FCC, CE, RoHS, UKCA, BIS |
| Dimensions | 178 x 78 x 45 mm (L x W x D) |
Downloads
